Suitable for warehouse, factory, commercial kitchen, etc.

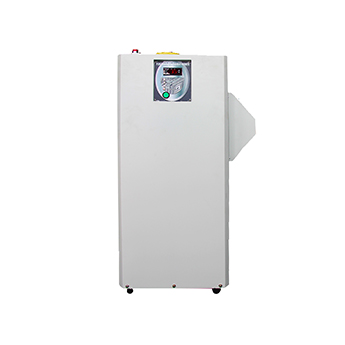

Portable Air Conditioner
SCP Refrigerated Air Coolers supply dry and cooled air with temperature to as low as 10C. They can be used in any industries and for in-door as well as out-door application.
Features
- Highly efficient
- Advance safety and protection devices
- Available for spot cooling and room cooling
- Supply dry and cooled air with temperature of 10C (as low as 5C will be available upon request)
- Can be modified to fit any special requirement
Specification
Model | PA05A | PA10A | PA15A/B | PA20A/B | PA30A/B |
Compressor Power HP | 0.5 | 1 | 1.5 | 2 | 3 |
Cooling Capacity btu/h | 4800 | 9000 | 12,000 | 19,000 | 30,000 |
Air Volume m³/H | 100 | 150 | 150-230* | 210-360* | 280-450* |
No. of Chilled Air Outlet | 1 x (2″) | 1 x (3″) | 1 x (4″) | 2 x(4″) | 3 x (4″) |
Power Supply | 220-240V, 50Hz, 1-Phase | ||||
Power Consumption Am | 3.4 | 4.3 | 5 | 8.5 | 15 |
Operating Condition | 20°C – 40°C | ||||
Cooling Area m² | specific cooling | 30 | 45 | 65 | |
Size W*L*H cm | 38*52*77 | 55*80*128 | 55*80*128 | 58*85*101 | 58*85*101 |
*Dual speed blower | “PAxxA = Air Cooled Condenser | “/B” = Water Cooled Condenser
