Cooling Moulds (Injection moulding, blow moulding and extrusion), air pressure automatic spot welder, CNC machining center, CNC electrical discharge machine, CNC lather; Machinery using Hydraulic oil, lubricating oil or other processing oil; electroplating, food processing, laser-cutting, DI water application, Lab application and industries which require process cooling.

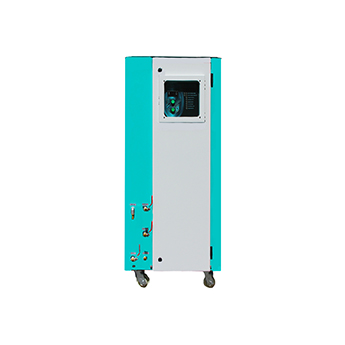

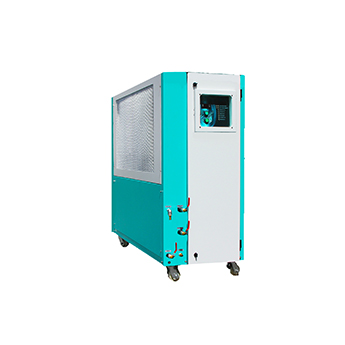

SPH Series
Special Features
- Temperature Accuracy of +0.2°C
- High Cooling Efficiency
- Advance Safety and Protection Devices
- Flexible Water Pump and Piping System
- Easy Installation
- Use one compressor to perform the cooling function
- Comes in two types: Upward Blowing (SP Series) and Side Blowing (SPH Series)
Specification
Single Compressor Series (SPH Series):
Side blowing and uses only 1 compressor to perform the cooling function.
| Model | SPH10 | SPH20 | SPH30 | SPH40 | SPH60 | SPH80 |
| Cooling Capacity Kcal/hr | 1200 | 2400 | 3020 | 4900 | 7800 | 10320 |
| KW | 1.4 | 2.8 | 3.5 | 5.7 | 9.1 | 12 |
| Compressor HP | 0.5 | 1 | 1.5 | 2 | 3 | 4 |
| Water Pump HP | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Water Flow Rate L/min@Bar | 15@2.5 | 20@2 | 20@2 | 40@1.5 | 40@1.5 | 50@1.4 |
| S/S Water Tank Volume | 6 | 8 | 22 | 35 | 38 | 43 |
| Condenser Fan Size mm | 250 | 300 | 350 | 400 | 400 | 500 |
| Dimension: Length mm | 500 | 745 | 675 | 825 | 800 | 1025 |
| Dimension: Width mm | 400 | 380 | 500 | 555 | 550 | 680 |
| Dimension: Height mm | 348 | 840 | 1030 | 1265 | 1270 | 1185 |
| Gross Weight kg | 50 | 58 | 92 | 119 | 136 | 170 |
